Fipsy FPGA V2

Fipsy FPGA / About / Fipsy FPGA V2

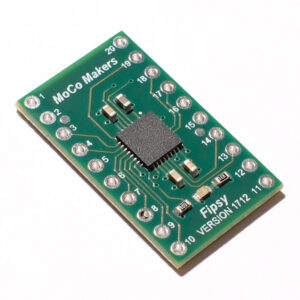

Fipsy FPGA V2

1280 LUTs

The more powerful Fipsy FPGA V2 is the perfect starter board for learning about FPGAs and hardware design principles.  With 1280 LUTs this device can support video drivers and larger, more complex learning projects (for reference the Fipsy V1 has appoximatly enough space to control a pinball machine, so more LUTs provide exponentially more possible complexity).

The Fipsy FPGA V2 is based on the Lattice Mach XO2 FPGA, and supported with numerous examples.

Set-up software, and instructions can be found here: Getting Started

Schematic: MCM17003_FIPSY_X2_SCH_250205

Datasheet for the FPGA – MachX02 Datasheet

Manufactured by – Allied Component Works

Order Now
  • Series: LCMXO2 (MachXO2 Family)
  • Logic Elements: 1280 LUTs
  • Adaptive Logic Modules (ALMs): 640 ALM
  • Logic Array Blocks (LABs): 160 LAB
  • Embedded Memory (ERB): 64 kbit
  • Distributed RAM (DRAM): 10 kbit
  • Maximum Operating Frequency: 269 MHz (includes 1 PLL for a wide range of frequencies)
  • Operating Supply Voltage: 2.5 V / 3.3 V
  • Family: Based on the MachXO2 series by Lattice Semiconductors.
  • Applications: Ideal for compact and high-performance FPGA solutions.
  • Ultra-Low Power: Optimized for energy-efficient applications.
  • Non-Volatile: Infinitely reconfigurable storage for consistent performance.
  • Programmable Interfaces: Supports programming via SPI and I2C.
  • Onboard LED: Enables simple functionality testing.

High-Performance Flexible I/O Buffer:

  • Supports a variety of interfaces:
    • LVCMOS: 3.3V, 2.5V, 1.8V, 1.5V, 1.2V
    • LVTTL, LVDS, Bus-LVDS, MLVDS, RSDS, LVPECL
    • SSTL: 2.5V/1.8V, HSTL: 1.8V
  • Schmitt Trigger Inputs: Up to 0.5 V hysteresis for noise immunity.

Schematic: MCM17003_FIPSY_X2_SCH_250205

Datasheet for the FPGA – MachX02 Datasheet
