Fipsy FPGA v1

Fipsy FPGA / About / Fipsy FPGA v1

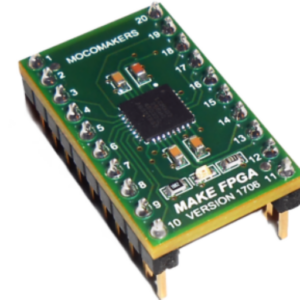

the fipsy FPGA.

Fipsy FPGA V1

256 LUTs

The Fipsy FPGA Breakout Board is the perfect starter board for learning FPGA and hardware design principles. Apply the 256 LUT FPGA towards your learning and small projects! Based on the Lattice Mach XO2 FPGA, and supported with numerous examples.

Set-up software, and instructions can be found here: Getting Started

Schematic: ACW17003_MAKEFPGA_X1_SCH_170622

Datasheet for the FPGA – MachX02 Datasheet

Manufactured by – Allied Component Works

The Fipsy V1 is Not Active, get the Fipsy V2 Instead!

Get the Fipsy V2
  • Chip: LCMXO2-256HC-4SG32C
  • Logic Elements: 256 LUTs
  • Distributed RAM: 2 kbit
  • Logic Array Blocks (LABs): 32
  • Operating Supply Voltage: 3.3 V
  • Maximum Operating Frequency: 269 MHz
  • Family: Based on the MachXO2 series by Lattice Semiconductors.
  • Applications: Ideal for compact and high-performance FPGA solutions.
  • Ultra-Low Power: Optimized for energy-efficient applications.
  • Non-Volatile: Infinitely reconfigurable storage for consistent performance.
  • Programmable Interfaces: Supports programming via SPI and I2C.
  • Onboard LED: Enables simple functionality testing.

High-Performance Flexible I/O Buffer:

  • Supports a variety of interfaces:
    • LVCMOS: 3.3V, 2.5V, 1.8V, 1.5V, 1.2V
    • LVTTL, LVDS, Bus-LVDS, MLVDS, RSDS, LVPECL
    • SSTL: 2.5V/1.8V, HSTL: 1.8V
  • Schmitt Trigger Inputs: Up to 0.5 V hysteresis for noise immunity.

Schematic: ACW17003_MAKEFPGA_X1_SCH_170622

Datasheet for the FPGA – MachX02 Datasheet

Feedback from the first crowdfunding campaign for the Fipsy V1

Backer #692 checking in, not a clue what I'm going to do with them but they're here!

Franklyn T

Recieved mine today, soldered up the pins and connected to Raspberry Pi now 🙂 Already got blinky in and diving into the projects/wiki now. Thanks Moco Makers

Ictinike

I was really looking forward to try to finally get my head around FPGAs... I've been designing pocket synths for a while now and its been intriguing me whether it is feasible to emulate IIR filters with this technology instead of MCU, making it more stable and possibly working with higher sample rate.

Mario I

I've always wanted to learn about FPGAs, but they just seem out of reach, and there is a barrier to entry at the cost of most boards. Even some of the more reasonable priced boards seem like they have a steep learning curve to them. Your price at $10.00 and a very reasonable shipping cost, made me think finally I can learn about these and not feel bad if I don't get it. Thank You.

LeRoy M

Backer #472 here. My Fipsy arrived today in Minnesota, USA. Can't wait to get started!

Jim W
